Benefits
- With electro-mechanical locking action
- Concealed frame installation for added visual elegance
- Also suitable for use as an electric strike
- For further advantages, see page 8, electric strikes for emergency exit and escape route applications
- Optionally available with integrated DORMA DCW system bus technology

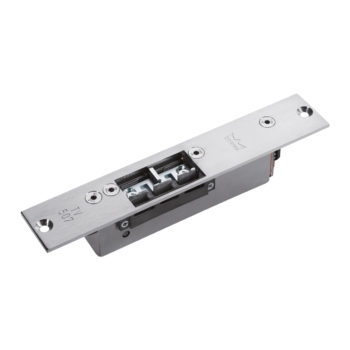

TV 500 – the approved electric strike for escape route doors
TV 500 locking devices are used as locking element in TMS emergency exit control systems. They comply with the German guidelines on electrical locking systems for doors used in emergency exits and escape routes (EltVTR) issued by the DIBt (German Institute for Civil Engineering).
Easy adaptation to the prevailing door type
The TV 500 is concealed in the door frame, while its counterpart, the TV-Z 510 mortise latch lock, is installed in the door leaf. Both the latch of the TV 500 and the latch of the TV-Z 510 are adjustable to compensation tolerances without having to dismount the components.
Versions for almost all kinds of doors
TV 500 and TV 500 DCW® are available with an angle strike plate for over-rebated doors or a flat strike plate for flush-closing doors. Also the well-known Easy Adapt latch guide is available as an option. All versions have an internal feedback contact for monitoring of activated/de-activated status and are ready for application at fire and smoke doors.
TV 500 DCW® for more convenience
The DCW® bus conveniently and quickly links the TV 500 DCW® and the TMS emergency exit control system. If required, analogue TV 500 locking devices can be linked to TMS systems with the aid of the TV DCW® adapter or the universal DCW® adapter.
TV-Z 510 mortise latch lock with adjustable latch
TV-Z 510 mortise latch lock as the counterpart to the TV 500 for installation in the door leaf – with adjustable latch. Especially suitable for use in conjunction with the DORMA TV 500 and whenever an adjustable latch in the door leaf is required.
